Sub-GHz Node Real Time Clock Thermal Drift Basics
Sub-GHz real-time clock drift stems from tuning fork parabolic frequency shifts, forcing widened radio receive guard windows that drain battery reserves.

Heat
Quartz crystal resonators operating at 32.768 kilohertz rely on mechanical tuning fork geometry, which produces a quadratic frequency response across temperature changes. Where high-frequency AT-cut crystals trace an S-curve, tuning fork blanks follow a downward parabola centered near room temperature. The standard parabolic equation defines this curve:
fracΔ ff0 = -k (T – T0)2 + ftol
In this relationship, k represents the parabolic curvature constant, typically rated between 0.034 and 0.040 parts per million per degree Celsius squared (p±/circC2). The variable T0 denotes the turnover temperature where the crystal reaches its peak frequency, conventionally designed at 25circC ± 5circC. ftol accounts for the room-temperature calibration tolerance, which usually spans ± 20 p± for standard commercial components.
At operational extremes, the quadratic factor drives almost all timekeeping error. A node in an unconditioned outdoor enclosure reaching -20circC runs 45 degrees below its turnover point. Squaring that 45-degree delta yields 2,025.
Multiplied by a typical curvature coefficient of 0.038 p±/circC2, the frequency drops by roughly 76.95 p±. Factoring in an initial manufacturing offset of -20 p± pushes the worst-case shift to -96.95 p±.
A standard tuning fork crystal exposed to sub-zero industrial deployment shifts frequency at four times the rate measured across mild commercial indoor ranges.
Time error accumulated during deep sleep scales directly with this offset. Real-time clock counters advance purely on raw oscillator cycles, so when the crystal slows, the clock lags real-world time and drifts out of sync with the gateway. Across a continuous 1-hour sleep window, that -96.95 p± drift produces a measurable lag:
Δ t = 3,600 s × (96.95 × 10-6) = 0.349 seconds
If the same node sleeps for 12 hours without network resynchronization, the cumulative temporal skew reaches 4.18 seconds. Sub-gigahertz radios operating under strict duty cycles or time-slotted access protocols cannot sustain network links under multi-second timing mismatches without expanding receive listening windows.

Window
Sub-gigahertz receivers require tight scheduling between sleep cycles to catch incoming packets without leaving the radio on continuously. Low-power architectures like LoRaWAN Class B, Wi-SUN FAN, and Time-Slotted Channel Hopping (TSCH) rely on predictable frame arrivals. When a node wakes for a downlink frame or beacon, the front-end must turn on before the preamble begins, and the guard window added to that receive slot must cover the maximum clock divergence accumulated since the last sync event.
Calculating the mandatory receive window length (Δ trx) involves combining preamble duration, maximum transmitter clock error, and maximum receiver clock error:
Δ trx = tpreamble + 2 × left( tsleep × left × 10-6 right) + tjitter
Take a sub-GHz node waking every 1,024 seconds to catch a gateway ping frame. If the gateway holds a precision ± 1 p± clock while the remote node exhibits a thermal drift of ± 80 p±, the combined error rate equals 81 p±. The accumulated uncertainty over 1,024 seconds yields 0.0829 seconds of timing drift.
The radio receiver must open at least 83 milliseconds before the expected transmission and remain active 83 milliseconds past the nominal mark if no preamble appears.
At a transmit power of 14 dBm in the 868 MHz band, opening receive guard windows by 100 milliseconds every hour consumes more cumulative energy than sending six 20-byte payload bursts.
Long listening windows quickly turn low-power endpoints into high-drain devices. A sub-GHz RF transceiver like the Semtech SX1262 or Texas Instruments CC1312R draws between 4.2 mA and 5.5 mA while actively searching for a preamble in sub-GHz bands. When clock drift forces the receiver to stay active for hundreds of milliseconds prior to packet arrival, the average sleep current model breaks down.

What Breaks When Clock Skew Exceeds Guard Limits?
Excessive drift causes catastrophic frame loss across time-synchronized networks. The following network degradation sequences occur when physical clock error outpaces protocol guard margins:
- Beacon Desynchronization occurs when the node receiver opens after the gateway preamble has completed, preventing network frame alignment.
- Ping Slot Drift forces class B endpoints to misses down-link commands entirely, forcing long network re-join procedures.
- Channel Hopping Mismatch shifts TSCH devices onto incorrect sub-GHz frequency channels during pseudo-random hopping sequences.
- Preamble Truncation leaves insufficient preamble symbols for the radio demodulator to lock onto packet headers under low signal-to-noise ratios.
Network recovery routines consume orders of magnitude more power than standard periodic listening. When resynchronization breaks down, the node executes a full channel scan, drawing continuous receiver current for several seconds. If a sub-GHz endpoint fails to catch three successive beacon windows, regulatory frame re-joins initiate, driving battery exhaustion within months rather than years.

Die
Silicon vendors offer three distinct frequency reference architectures to meet timekeeping requirements in low-power nodes. System designers must select between bare tuning fork quartz crystals, Temperature Compensated Crystal Oscillators (TCXO), and silicon MEMS resonators integrated directly into the sub-GHz System-on-Chip (SoC). Each selection fixes a baseline current consumption floor, board real estate profile, and landed component unit price.
| Oscillator Architecture | Accuracy (-40 to +85°C) | Active Supply Current | Sleep Current Contribution | Unit Cost Impact (USD) |
|---|---|---|---|---|
| Standard 32.768 kHz Crystal (XTAL) | ±120 to ±180 ppm | 250 nA to 500 nA | 150 nA to 300 nA | $0.08 to $0.18 |
| Temperature Compensated XTAL (TCXO) | ±2 to ±5 ppm | 1.2 μA to 2.5 μA | 1.2 μA to 2.5 μA | $0.65 to $1.25 |
| Integrated Silicon MEMS Oscillator | ±10 to ±20 ppm | 900 nA to 1.8 μA | 800 nA to 1.5 μA | $0.35 to $0.60 |
| Internal Ultra-Low-Power RC Oscillator | ±1,000 to ±5,000 ppm | 50 nA to 100 nA | 20 nA to 50 nA | $0.00 |
An uncompensated 32.768 kHz quartz crystal needs only an inverter driving circuit inside the MCU core, keeping sleep current draw below 500 nanoamperes. Inserting an active TCXO provides flat frequency stability across wide industrial temperature ranges, but the compensation circuitry inside the TCXO package draws a constant 1.5 to 2.5 microamperes. In long-life field devices where the target baseline sleep budget is 2.0 microamperes total, a TCXO consumes the entire power allowance before the MCU core or sensor interfaces draw a single electron.
Under ETSI EN 300 220 requirements for European 868 MHz bands, transmitting on incorrect channel edge boundaries due to clock drift voids radio compliance type approvals.
Modern sub-GHz SoCs often include internal low-frequency RC oscillators that eliminate external quartz entirely. Uncompensated internal RC circuits exhibit massive thermal instability, drifting by up to 5,000 p± across an industrial temperature range. Internal RC clocks cannot maintain network timing without continuous firmware recalibration against a secondary stable source.
Published datasheets typically characterize clock stability under controlled ambient conditions rather than during steep thermal gradients. Software calibration using internal thermistors can approach TCXO stability in principle, but only if temperature is sampled frequently enough to track ambient rate of change, shifting the energy penalty from hardware BOM into CPU cycles.

Firmware
Software compensation algorithms adjust real-time clock count registers based on ambient measurements. Sub-GHz radio nodes utilize internal SoC temperature sensors or external thermistors to measure ambient shifts, calculate the resulting quartz frequency offset, and apply fractional prescaler corrections. Because the quadratic response curve of tuning fork quartz is deterministic, mathematical compensation yields high accuracy when temperature telemetry is fresh.
Firmware developers implement compensation either by evaluating the parabolic deviation equation directly or by pulling from a lookup table in non-volatile flash. The adjusted timer period (Tcompensated) modifies the nominal clock count multiplier (N0):
Ncorrected = N0 × left( 1 + k (Tmeasured – T0)2 – ftol right)

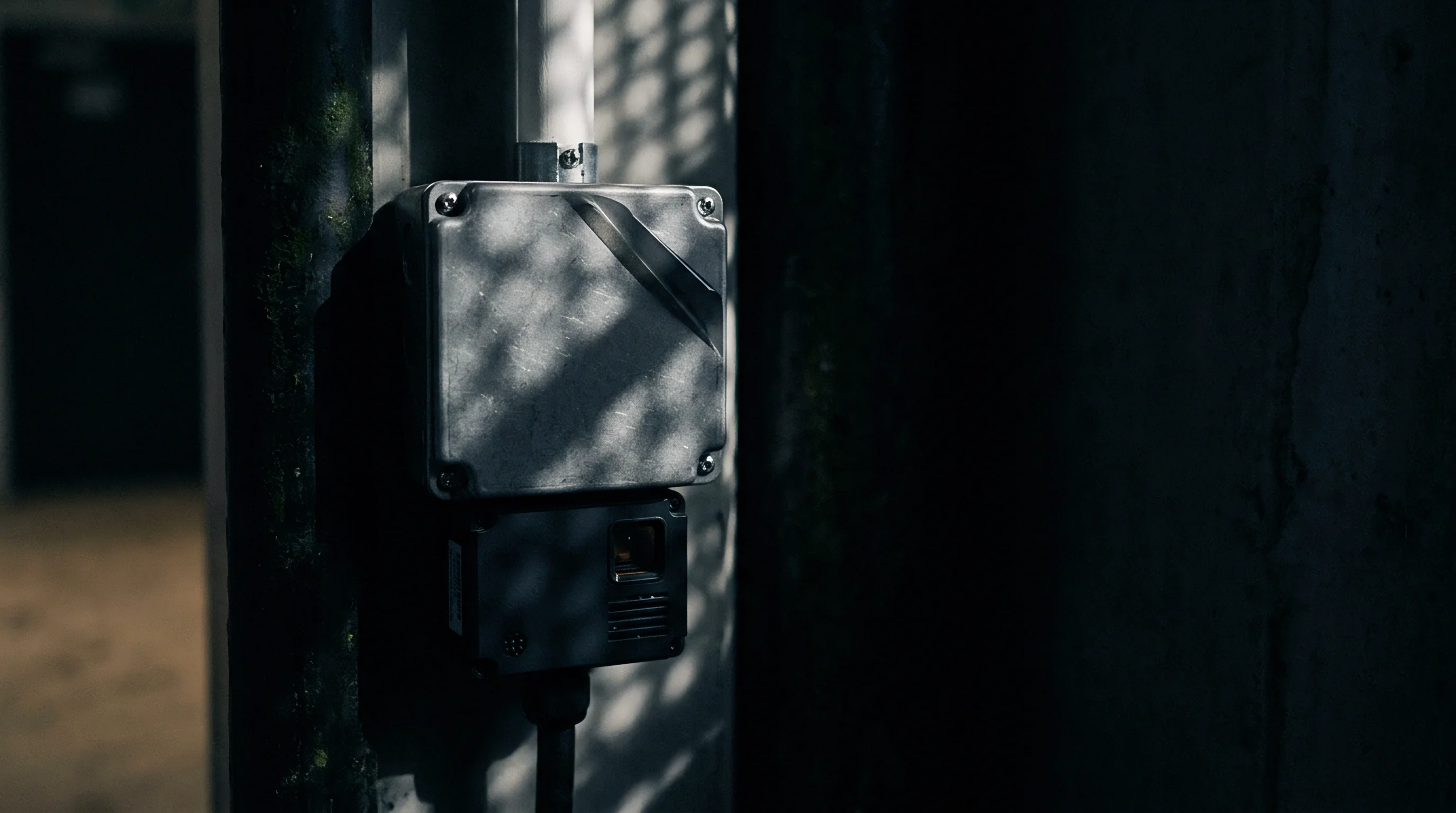

In a dark junction box exposed to direct sunlight, thermal slew rates can exceed 2circC per minute. If firmware samples ambient temperature only once every 30 minutes to conserve power, the calculated correction factor falls out of step within five minutes. Drift accumulated across the remaining 25 minutes will break network synchronization despite the active compensation routine.
| Temperature (°C) | Raw XTAL Offset (ppm) | Uncompensated Drift (1 Hour) | Uncompensated Drift (24 Hours) | Compensated Drift (24 Hours) |
|---|---|---|---|---|
| -40°C | -180.7 ppm | 0.650 seconds | 15.61 seconds | 0.26 seconds |
| -10°C | -66.5 ppm | 0.239 seconds | 5.74 seconds | 0.09 seconds |
| +25°C (Turnover) | -20.0 ppm | 0.072 seconds | 1.72 seconds | 0.03 seconds |
| +60°C | -66.5 ppm | 0.239 seconds | 5.74 seconds | 0.09 seconds |
| +85°C | -156.8 ppm | 0.564 seconds | 13.55 seconds | 0.22 seconds |
Implementing software-based temperature compensation on an embedded sub-GHz node follows a strict logical sequence to balance mathematical accuracy against execution energy:
- Initialize the internal analog-to-digital converter (ADC) and internal SoC bandgap voltage reference during the boot cycle.
- Sample the onboard temperature sensor channel at a dynamic interval set by the detected rate of temperature change.
- Calculate the delta temperature relative to the quartz turnover temperature (25circC).
- Compute the fractional parts-per-million frequency error using the parabolic constant hardcoded during factory calibration.
- Convert the calculated fractional error into a cycle adjustment value for the hardware RTC prescaler hardware register.
- Write the adjustment offset to the RTC compensation register prior to re-entering deep sleep mode.
The IEEE 802.15.4g standard, which defines physical layer requirements for sub-GHz smart utility networks, specifies that symbol timing accuracy must remain within ± 20 p± across all operating conditions to maintain framing compliance. Software compensation systems that fail to sample temperature within defined thermal gradient thresholds violate this timing floor, forcing the link layer into extended preamble fallback modes.

Budget
Long-term node viability hinges on the financial and energy tradeoffs between physical crystal precision and battery capacity. Hardware design choices directly dictate overall bill-of-materials (BOM) cost, primary battery selection, and total system maintenance schedules. Choosing a cheap $0.10 tuning fork crystal over a $0.85 TCXO saves direct hardware costs on the assembly line, but transfers energy burdens to the power source.
Non-rechargeable Lithium Thionyl Chloride (LiSOCl2) cells are common in sub-GHz designs due to their high energy density and low self-discharge, but they impose strict operating voltages and suffer from passivation under heavy current steps. When clock drift keeps the receiver running for hundreds of milliseconds just to catch shifting network slots, the resulting current draw accelerates cell degradation.
A 1.2 Amp-hour LiSOCl2 cell costing 1.50 yields roughly 1,000 mAh of usable capacity once annual self-discharge over a 10-year target life is taken into account. If uncompensated clock drift stretches active receive time from 10 milliseconds to 150 milliseconds per wake cycle, average node current climbs from 3.5 μA to 18.2 μA, cutting service life from 10.8 years down to 2.4 years. Swapping in a 3.6 Ah cell adds 2.20 to the BOM, wiping out the 0.75 saved by omitting the TCXO.
Even with receiver noise figure held constant, wider guard windows expose the front-end to more channel noise and interference, raising the odds of packet corruption in crowded bands like 868 MHz in Europe or 915 MHz in the Americas. Retransmissions triggered by lost headers drain the battery far faster than the idle listening itself.
How much thermal variance can a deployed sub-GHz network sustain before the total cost of energy infrastructure eclipses the initial savings of uncompensated quartz timekeeping?
