Harmonizing Cross Border Technical Dossiers for Multi Transmitter Modular Radio Host Approvals

Stack

Radiated energy from adjacent transmitters couples into printed circuit traces, generating non-linear mixing products across active receiver bands. When cellular modems, Wi-Fi transceivers, and Bluetooth chipsets share a single mechanical enclosure, their fundamental transmission frequencies interact through parasitic capacitances, power supply rails, and common chassis ground planes. These interactions create intermodulation products that fall directly into active listening frequencies.

Trace impedance dictates harmonic purity. A power amplifier driven near saturation generates harmonic energy that radiates across nearby printed circuit board structures. When a second transmitter broadcasts concurrently, the mixing of these two high-energy fields produces passive intermodulation.

Anechoic chamber scans reveal that two transmitters passing individual spurious tests regularly fail regulatory emission thresholds once operated in simultaneous transmission modes.

Intermodulation Products in Dense Enclosures

Carrier frequencies from a cellular transceiver combine with local wireless transceivers inside metallic enclosures, yielding third-order sum and difference signals. These intermodulation products often emerge at unexpected frequencies. If an LTE Cat-1 modem transmits on Band 4 (1710 MHz to 1755 MHz) while a Wi-Fi module broadcasts on 2412 MHz, their second-order difference product generates energy around 657 MHz to 702 MHz, which can blind adjacent Band 12 or Band 28 receiver circuits.

Unwanted intermodulation kills receiver performance.

Coupling degrades receiver sensitivity. Chamber scans capture this degradation as elevated noise floors and intermittent radiated spurious spikes. The physical layout of the host board dictates the amplitude of these mixing products.

Ground returns routed through narrow neck-downs or slotted planes create common-mode voltages that convert internal circuit currents into efficient dipole radiators.

A third-order intermodulation product measuring -36 dBm at the receiver input degrades cellular receiver sensitivity by 14 dB under simultaneous Wi-Fi transmission.

Chambers expose hidden board coupling. When multiple modular transmitters operate concurrently, harmonic distortion radiates beyond the chassis, breaking the radiated emission limits defined under international regulatory standards. These limits enforce strict caps on spurious emissions outside designated operational bands.

Why Spurious Emissions Spike on Colocated Turntables?

During full thirty-six-degree azimuthal rotation in an anechoic chamber, multi-band devices display unexpected harmonic peaks where two power amplifiers saturate simultaneously. The receiving antenna on the chamber mast records maximum field strength when the host chassis aligns with the polarization of the harmonic radiation. This alignment varies depending on cable routing, enclosure openings, and board resonance.

Pre-scans reveal hidden harmonic spikes. A fast pre-scan identifies the specific frequencies where emissions approach legal limits. The compliance measurement then rotates the product through a complete sphere while adjusting antenna mast height between one and four meters.

Simultaneous transmission creates non-linear field vector additions, causing sharp emission lobes that remain invisible during single-transmitter evaluation.

• Intermodulation Spurious Emissions manifest when two fundamental frequencies mix within non-linear junction points on the printed circuit board, creating emissions exceeding regulatory limits.
• Chassis Cavity Resonance amplifies internal electromagnetic fields when enclosure dimensions match half-wavelength multiples of active radio frequencies.
• Antenna Desensitization occurs when high-power transmissions from one module overload the low-noise amplifier of an adjacent co-located receiver.
• Common Ground Return Contamination forces high-frequency return currents through shared reference planes, converting digital ground noise into radiated electromagnetic fields.

Failing to isolate these mixed frequencies forces a full chassis redesign and invalidates every preliminary radiated compliance report.

Crosswalk

Regulatory authorities maintain diverging legal definitions regarding where modular certification permissions end and host integrator liabilities begin. An approval granted by the Federal Communications Commission (FCC) in the United States does not translate into automatic compliance with the European Union Radio Equipment Directive (RED), Japan Radio Law, or China State Radio Regulation Committee (SRRC) requirements. Each market defines host compliance through separate procedural paths.

Divergent rules create filing friction. The host manufacturer bears legal accountability for the completed assembly placed on the market. While modular grants reduce the volume of fundamental transmitter testing, they introduce complex obligations for spot-checking, co-location RF exposure assessment, and composite system declarations.

Regional Divergence in Modular Grant Reusability

The Federal Communications Commission permits full modular approval reuse under KDB 996369 D04 when antenna types and trace layouts remain strictly identical to original filings. The host manufacturer conducts spot-checks for radiated spurious emissions and simultaneous transmission compliance, documenting findings in the host technical file. The original FCC ID numbers appear on the external product label alongside the host identification.

Innovation, Science and Economic Development Canada (ISED) follows a parallel path under RSS-GEN and RSP-100, accepting modular test data while requiring Canadian representative declarations and bilingual labelling. Both North American bodies distinguish between single-modular transmitters, limited modular transmitters, and split-modular transmitters, imposing different evaluation requirements for each category.

Technical Construction Files under European Directives

Under the Radio Equipment Directive 2014/53/EU, the final entity placing the finished apparatus on the market carries total legal responsibility for essential radio, EMC, and health protections. European conformity assessment does not recognize modular grants as legal authorization. The manufacturer evaluates the complete multi-radio product against harmonized European standards, including ETSI EN 300 328 for wideband data transmission, ETSI EN 301 893 for 5 GHz RLAN, and ETSI EN 301 489-1/-17/-52 for electromagnetic compatibility.

European compliance demands total accountability. When multiple radios inhabit one enclosure, ETSI EN 303 446-1 and ETSI EN 303 446-2 specify the exact verification procedures for combined equipment. The manufacturer compiles a Technical Construction File (TCF) containing circuit schematics, risk assessments, test reports from accredited laboratories, and a formal Declaration of Conformity before applying the CE mark.

Under ETSI EN 303 446-1, integrating pre-certified radio modules does not eliminate the legal obligation to evaluate aggregate electromagnetic compatibility and spurious emissions across the composite host.

Customs authorities seize non-compliant shipments. If the technical file lacks simultaneous transmission evidence or combined EMC test records, market surveillance authorities across European member states issue immediate product recall notices and block import processing.

ETSI EN 303 446-1 Clause 5.1.2 defines specific combined equipment assessment methods, shifting the burden of inter-radio immunity entirely onto the final product integrator.

Calculation

Simultaneous radio frequency exposure assessments combine electromagnetic energy metrics across every active emitter situated within twenty centimeters of a user. Regulatory bodies establish strict mathematical relationships to determine whether multi-transmitter devices qualify for test exemption or demand physical Specific Absorption Rate (SAR) chamber evaluation. Mismatched assessment procedures between jurisdictions create severe compliance gaps.

Exposure ratios compound rapidly. An individual radio operating below its standalone exposure threshold can breach total allowable radiation limits when evaluated concurrently with companion transmitters. The sum of all active exposure ratios must remain equal to or less than one to maintain compliance without supplementary laboratory intervention.

Simultaneous Exposure Summation across Regulatory Regimes

Evaluation procedures combine individual fractional exposure values against regional maximum permissible limits to demonstrate total field compliance. The Federal Communications Commission enforces the Simultaneous Transmission Exposure Ratio (STER) under 47 CFR § 1.1307 and KDB 447498 D04. For mobile host configurations with separation distances exceeding twenty centimeters, Maximum Permissible Exposure (MPE) calculations govern the assessment.

The total MPE ratio represents the sum of individual fractional power density values divided by their respective frequency-dependent limits. For mobile exposure conditions, the governing equation balances individual power densities against statutory limits:

STER = (S1 / MPE1) + (S2 / MPE2) +. + (Sn / MPEn) <= 1.0

Where S represents the calculated power density at twenty centimeters and MPE represents the maximum permissible exposure limit at the operational frequency. For portable devices operating within twenty centimeters of the human body, standalone SAR exclusion thresholds determine whether simultaneous SAR testing is mandatory.

Worked Aggregate Exposure for Tri Radio Gateways

A standard industrial gateway enclosure houses an LTE Cat-4 modem, a 2.4/5 GHz Wi-Fi transceiver, and a Bluetooth Low Energy peripheral with dedicated external dipole antennas. Assume the host maintains a minimum physical separation distance of twenty centimeters from all persons. The cellular modem transmits at 23 dBm (200 mW) on Band 7 (2600 MHz) with a 3 dBi antenna gain.

The Wi-Fi transceiver operates at 18 dBm (63 mW) on 2.4 GHz with a 2 dBi antenna gain. The Bluetooth radio broadcasts at 4 dBm (2.5 mW) with a 1.5 dBi antenna gain.

Effective Isotropically Radiated Power (EIRP) calculations establish the source-based time-averaged field strength. The power density at twenty centimeters distance (R = 20 cm) is determined through the standard spherical propagation equation:

S = EIRP / (4 π R^2) = EIRP / 5026.55 cm^2

For the LTE transmitter, total EIRP equals 26 dBm (398.1 mW), generating a power density of 0.0792 mW/cm^2. Under FCC Part 15 rules, the MPE limit at 2600 MHz is 1.0 mW/cm^2, yielding an exposure fraction of 0.0792. Under ISED RSS-102 Issue 6, the reference power density limit at 2600 MHz is 0.548 mW/cm^2, producing an exposure fraction of 0.1445 for the same cellular signal.

Colocated transmitters operating within close physical proximity generate cumulative electromagnetic energy fields that exceed individual exposure thresholds.

Impedance mismatches create hot spots. If antenna gains increase by 3 dBi during production mechanical optimization, or if the product enclosure forces a user separation distance reduction to ten centimeters, the calculated exposure ratio quadruples, instantly breaching compliance thresholds and triggering mandatory SAR phantom testing.

Whether future harmonization revisions will establish universally accepted simultaneous SAR simulation standards remains an open question across international telecommunications bodies.

Foil

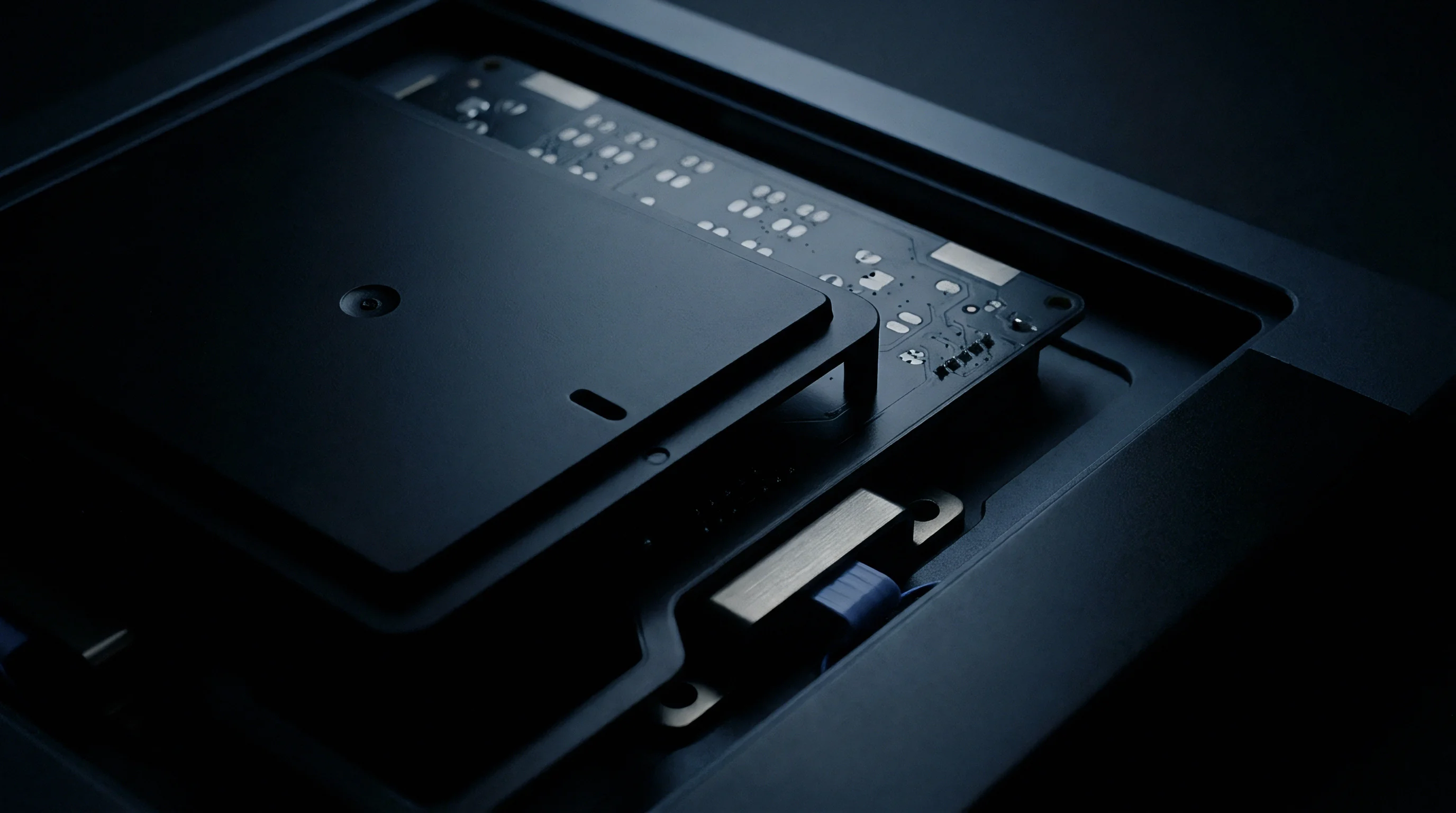

Metallic shielding cans, copper grounding tape, and dedicated ground planes suppress unwanted electromagnetic interference between closely packed radio modules. Physical isolation mechanisms prevent high-frequency noise from digital baseband processors, switching power supplies, and external memory buses from entering sensitive radio receiver chains. Without effective board-level isolation, internal clock harmonics mix directly with transmitted carrier waves.

Shielding failures ruin launch schedules. When modular transmitters are mounted on host motherboards without adequate copper isolation barriers, radiated energy couples into peripheral traces, turning input-output cables into active broadcast antennas. Correcting these physical radiation paths late in the validation cycle forces extensive mechanical revisions.

Physical Isolation and Trace Routing Rules

Microstrip feeds connecting modular radio outputs to host connectors exhibit severe parasitic radiation when routed over broken ground reference planes. A continuous, uninterrupted ground reference directly beneath RF traces maintains fifty-ohm characteristic impedance and contains electromagnetic fields within the dielectric substrate. Stitching vias placed along trace boundaries at intervals smaller than one-twentieth of the operational wavelength eliminate edge radiation.

Antenna spacing fixes isolation depth. Maintaining at least twenty decibels of passive physical isolation between co-located antennas prevents receiver saturation and cross-modulation distortion. High-isolation directional antennas, physical spatial separation, and cross-polarization arrangements reduce coupling without requiring active software duty cycle throttling.

Antenna separation distance remains the single most effective defense against RF desense in multi-radio enclosures.

What Alterations Invalidate Existing Modular Grants?

Modifying an antenna trace geometry or substituting a transceiver component instantly nullifies original certification legitimacy. Regulatory agencies classify any modification to antenna gain, radiation patterns, enclosure materials, or physical separation distances as a potential deviation from certified parameters.

The host product documentation must detail every structural element of the composite radio implementation to withstand regulatory scrutiny. Engineering changes must follow strict validation steps before production release:

1. Antenna Gain Verification confirms that host-integrated antenna assemblies do not exceed the maximum peak gain approved under the original modular transmitter grant.
2. Trace Layout Duplication verifies that microstrip and coplanar waveguide geometries on the host motherboard match the modular vendor reference design within exact manufacturing tolerances.
3. Permissive Change Filing Execution initiates a Class II Permissive Change (C2PC) under FCC rules or a Class IV Permissive Change under ISED procedures when new antenna types are deployed.
4. Chassis Emission Validation executes radiated spot-check measurements across active transmit frequencies in full operational configuration to ensure enclosure materials do not alter emission profiles.

The composite technical construction file consolidates documentation demonstrating that the host preserves the integrity of all integrated modular components:

• Modular Grant Certificates covering FCC, ISED, MIC, and regional homologation documents for every installed radio module.
• Host Antenna Specifications detailing peak gains, radiation patterns, polarization axes, and physical connector interfaces.
• Simultaneous Exposure Analysis providing mathematical MPE summations or accredited laboratory SAR test reports covering composite multi-radio operation.
• Inter-Radio EMC Test Reports demonstrating compliance with ETSI EN 301 489, FCC Part 15B, and regional unintentional radiator standards.
• Schematics and PCB Layout Files illustrating continuous ground return paths, RF trace dimensions, and metallic shielding structures.

Module vendors routinely claim that their pre-certified modules require zero host-level verification, leaving integrators with invalid declarations when end products fail customs audits.

Intake

Submitting a completed compliance package to accredited certification bodies demands rigorous synchronization of laboratory test samples, firmware controls, and administrative paperwork. Telecommunication Certification Bodies (TCBs) in the United States, Notified Bodies in the European Union, and Registered Certification Bodies (RCBs) in Japan enforce distinct dossier intake protocols. Administrative discrepancies or incomplete engineering files stop review queues immediately.

Filing queues multiply lead times. A laboratory booking secured without finalized test firmware results in dead chamber time, wasted test fees, and delayed market entry. Successful filings depend on aligning documentation, physical test samples, and local regulatory representation well in advance of commercial production runs.

Certification Agency Procedures and in Country Mandates

The Federal Communications Commission operates through private Telecommunication Certification Bodies, whereas Japan MIC and China SRRC demand distinct domestic laboratory engagements and local representative entities. In the United States and Canada, TCBs examine test reports, verify modular integration conditions, and issue grant certificates within two to three weeks of complete file submission. In contrast, China SRRC mandates physical sample importation into accredited domestic laboratories, requiring eight to twelve weeks of testing and review.

Local agents sign legal declarations. Brazil (ANATEL), South Korea (National Radio Research Agency), and Taiwan (National Communications Commission) mandate local in-country legal representation. The local applicant must maintain domestic corporate registration and accept ongoing legal liability for product market surveillance.

Foreign manufacturers cannot hold equipment certificates directly in these jurisdictions.

Sample Preparation and Dedicated Firmware Provisions

Chamber testing requires custom diagnostic software images that lock individual transmitters into continuous wave, maximum power, and specific modulation states. Commercial operating software dynamically throttles power, switches channels, and shuts down idle transceivers, preventing anechoic chamber receivers from capturing stable spectrum analyzer sweeps. Test engineers must flash dedicated radio test software (such as vendor-specific manufacturing firmware or direct AT command control routines) before delivering units to the laboratory.

Firmware locks prevent power drift. Conducted power measurements must match the exact nominal values and upper production tolerance limits specified in the original modular grant files. If the host test firmware drives an amplifier 0.5 dB above the approved grant maximum, the laboratory halts the test campaign, requiring engineering firmware revisions and invalidating completed scan runs.

Test modes override normal operations. A test engineer configures simultaneous transmission states by enabling concurrent packet generation across all active modems. For complex hosts featuring cellular, Wi-Fi 6E, and Bluetooth transmitters, the test controller drives continuous transmissions on worst-case overlapping channel combinations, capturing spurious intermodulation spikes across the complete frequency spectrum up to 40 GHz.

A technical dossier completed with rigorous laboratory verification and complete trace schematics clears international customs gates while incomplete paperwork languishes in regulatory quarantine.
